SPT-5.50 Robotic Work Cell

Hot Spinning & Shear Forming | Automated Production Cells

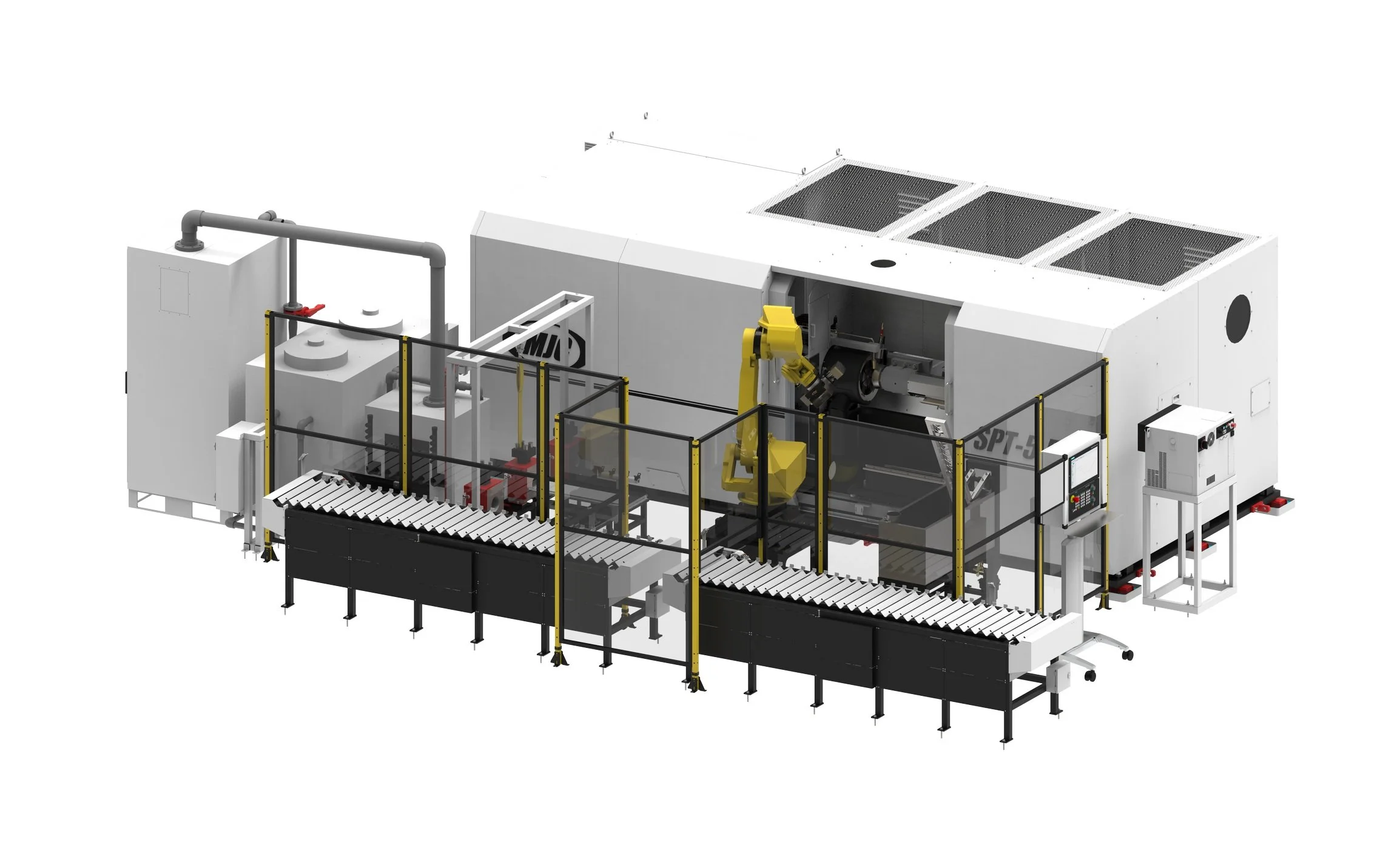

The SPT-5.50 work cell is an MJC SPT tube spinning machine delivered as a complete automated cell, with a pedestal-mounted six-axis robot handling machine load and unload between integrated infeed and outfeed conveyors.

Part of the MJC SPT Series. The forming process is hot spinning and neck forming, the same as on every other SPT machine; this page covers the cell built around it.

MJC Engineering is an officially recognized and preferred robotics system integrator. Cells are built around the robot the plant already standardizes on: ABB, FANUC, Kawasaki, Yaskawa, Güdel or KUKA.

The robot carries a dual-station end-of-arm tool, removing the finished part and loading the next blank in a single motion. Robotic systems increase quality and productivity, eliminate operator injuries and reduce floor space requirements.

  • Key capabilities

    • Robotic machine load and unload with dual-station end-of-arm tooling

    • Integrated infeed and outfeed roller conveyors

    • Full perimeter guarding with interlocked access

    • Faster cycle times with robot loading and unloading

    • RobotPRO for seamless coordination between CNC machine and robot

  • Typical applications

    • Machine tending and machine load / unload

    • Material handling and pick and place

    • In-cell transfer and end-of-arm tooling

    • Hot forming of cylindrical high pressure components

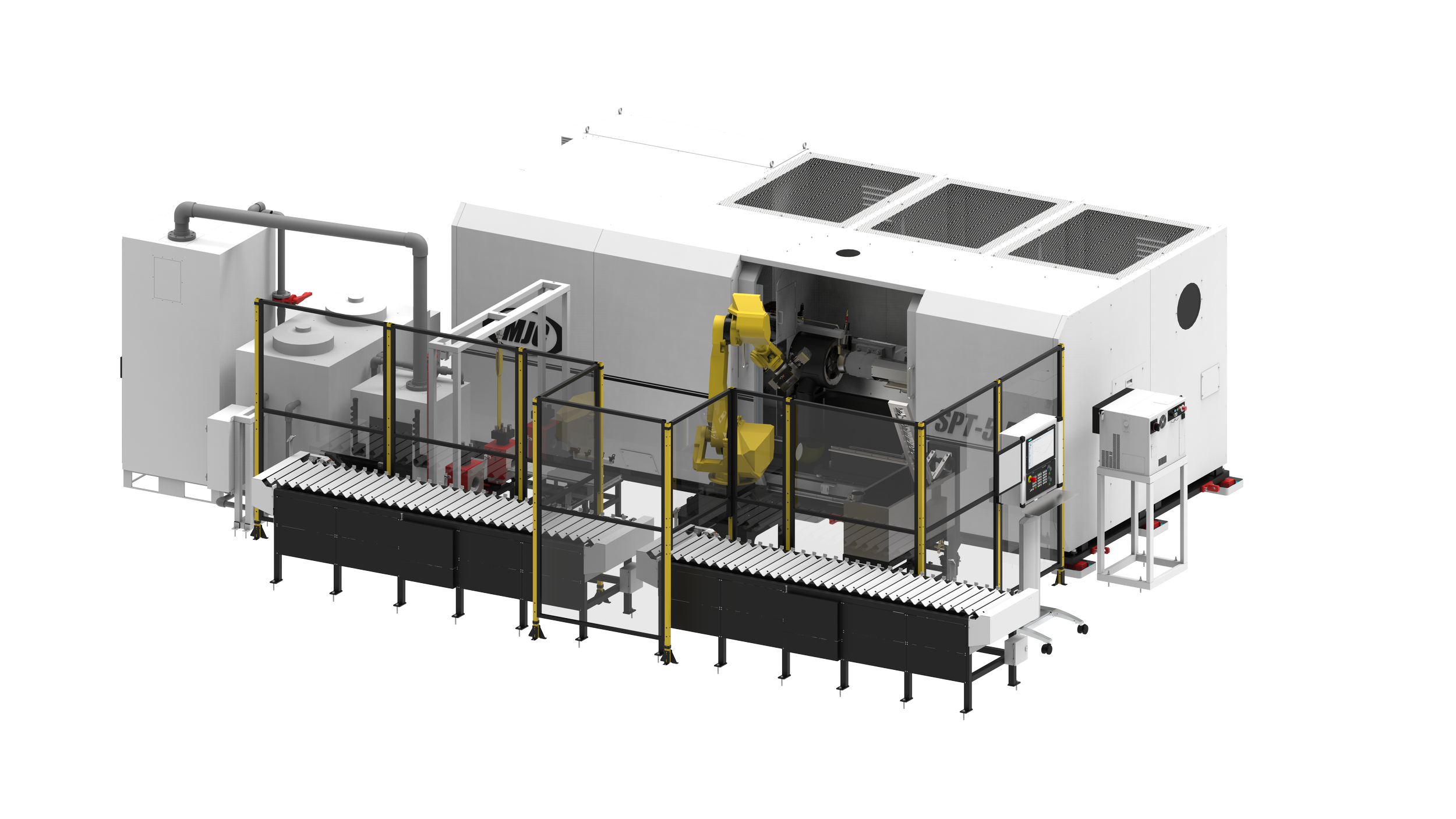

SPT-5.50 FRONT RIGHT.png
SPT-5.50 ROBOT GRIPPER.png

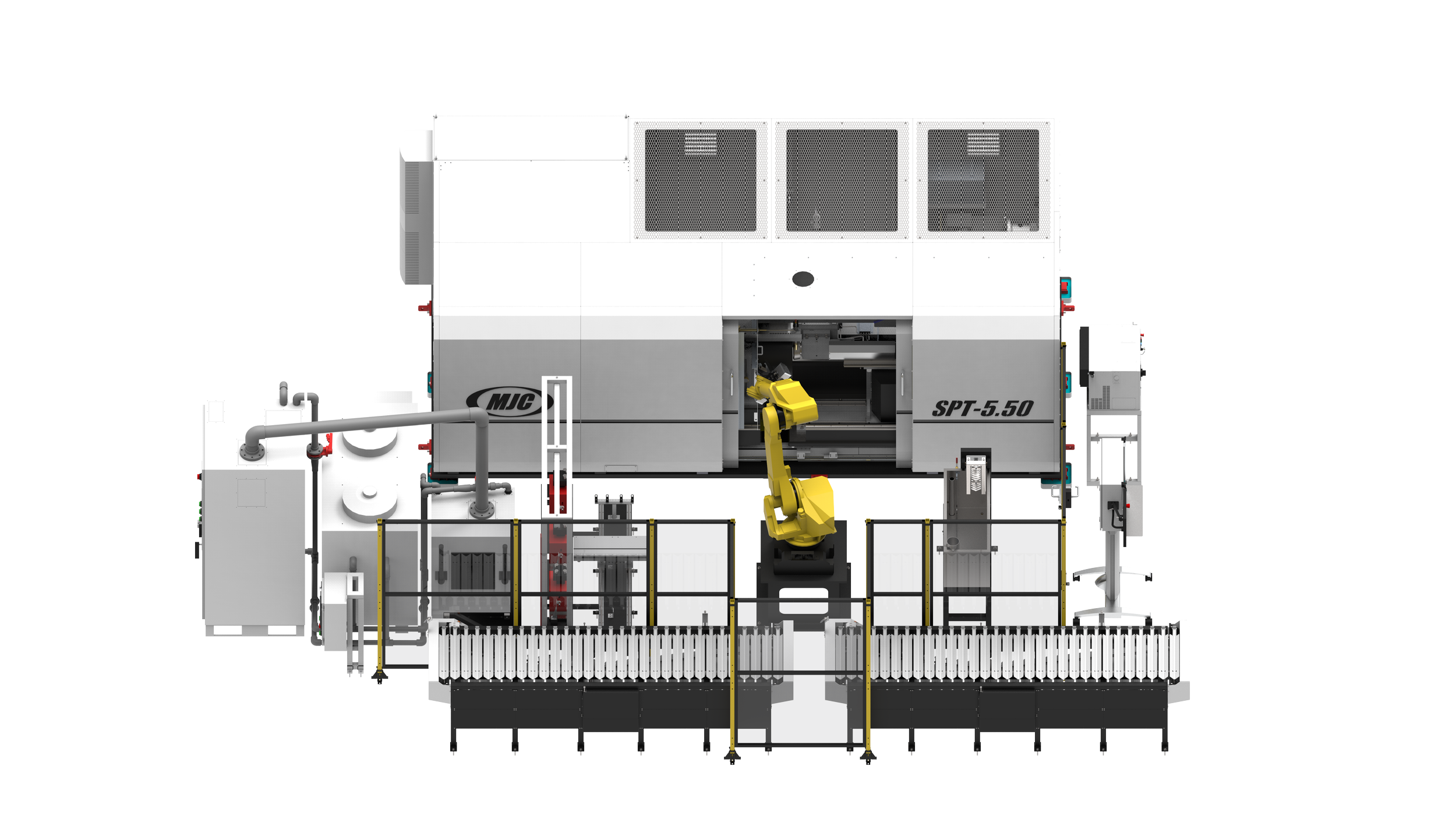

SPT-5.50 FRONT ANGLED.png

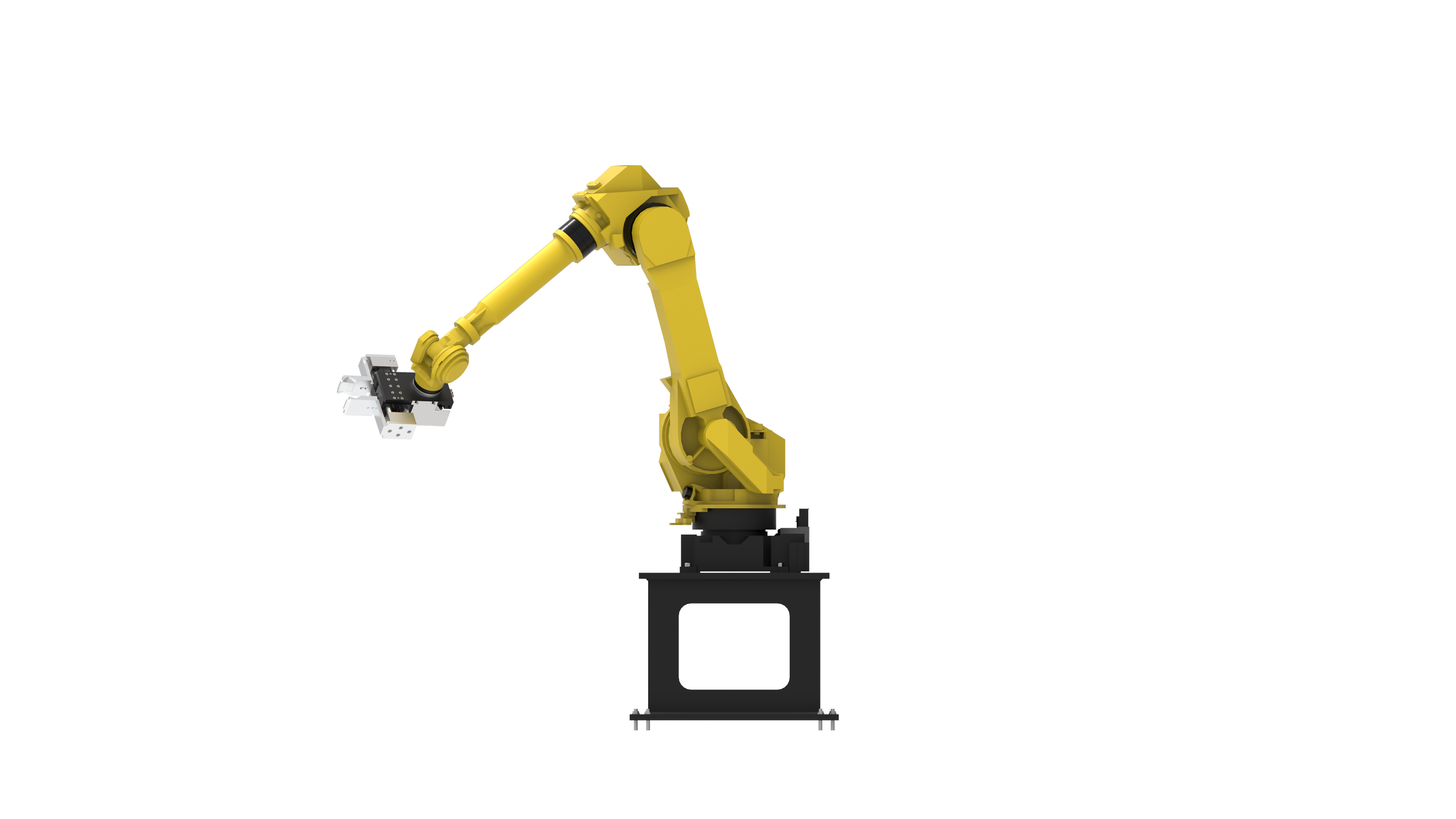

SPT-5.50 ROBOT 2.png

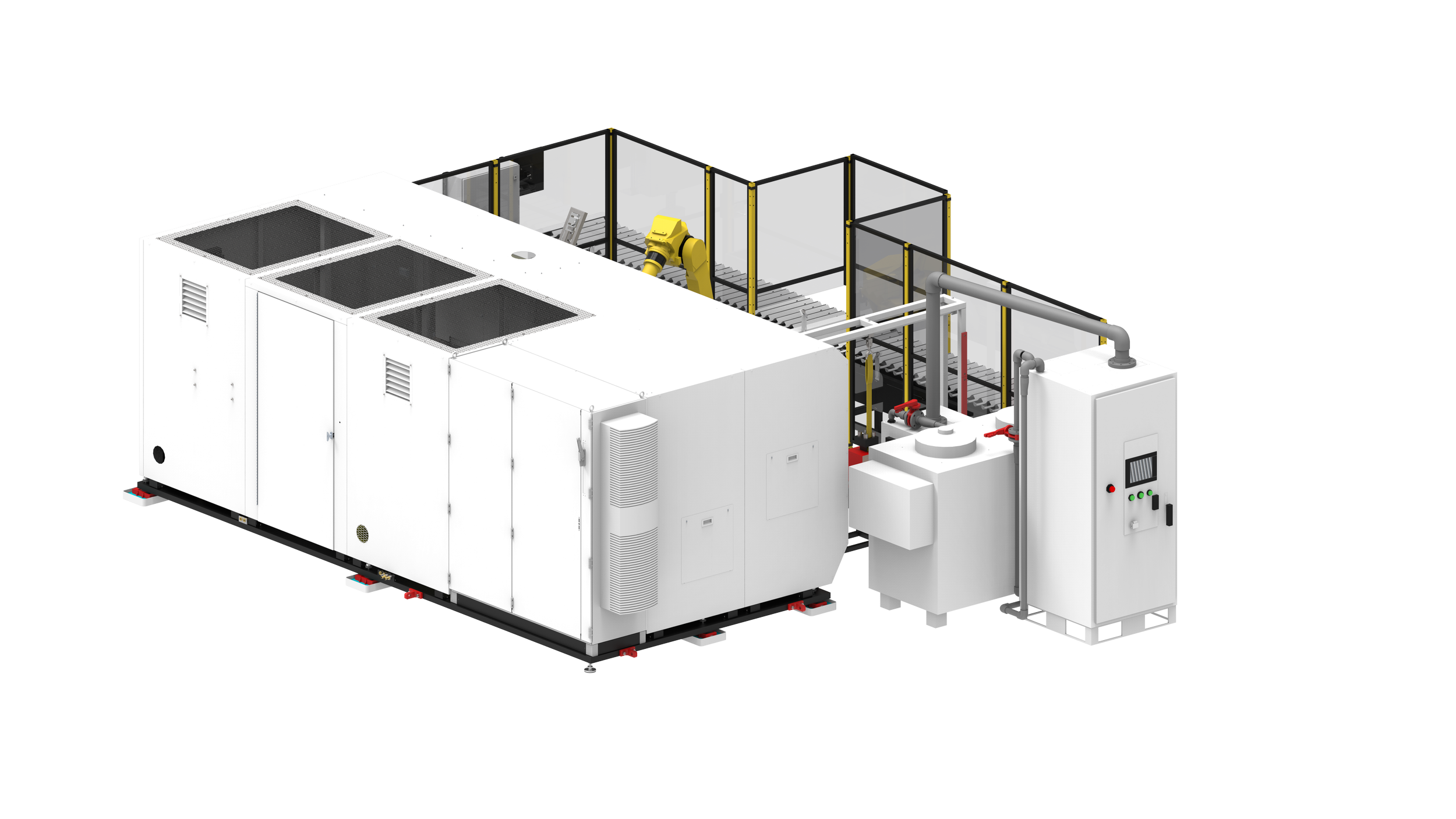

SPT-5.50 BACK LEFT.png

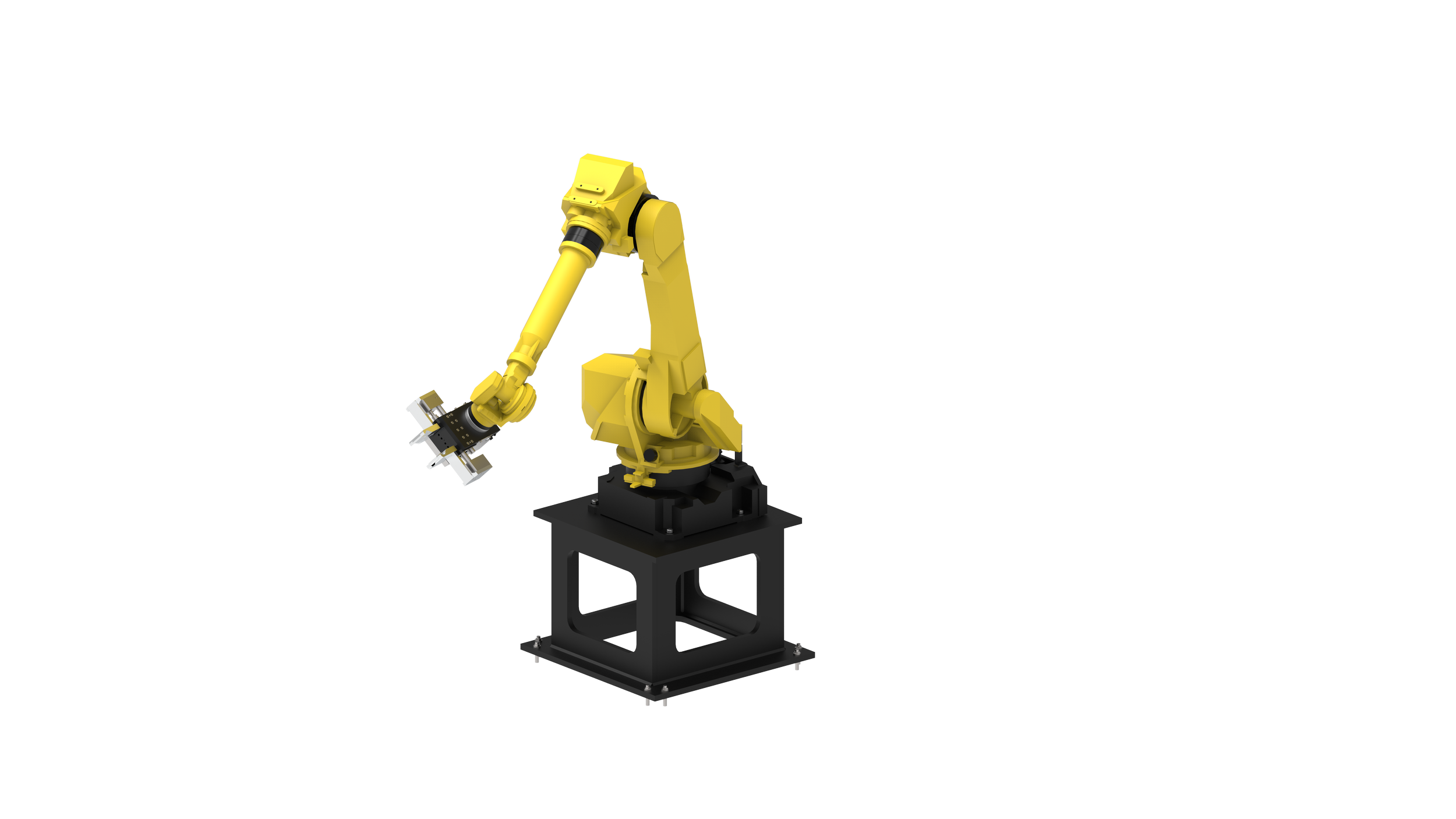

SPT-5.50 ROBOT 1.png

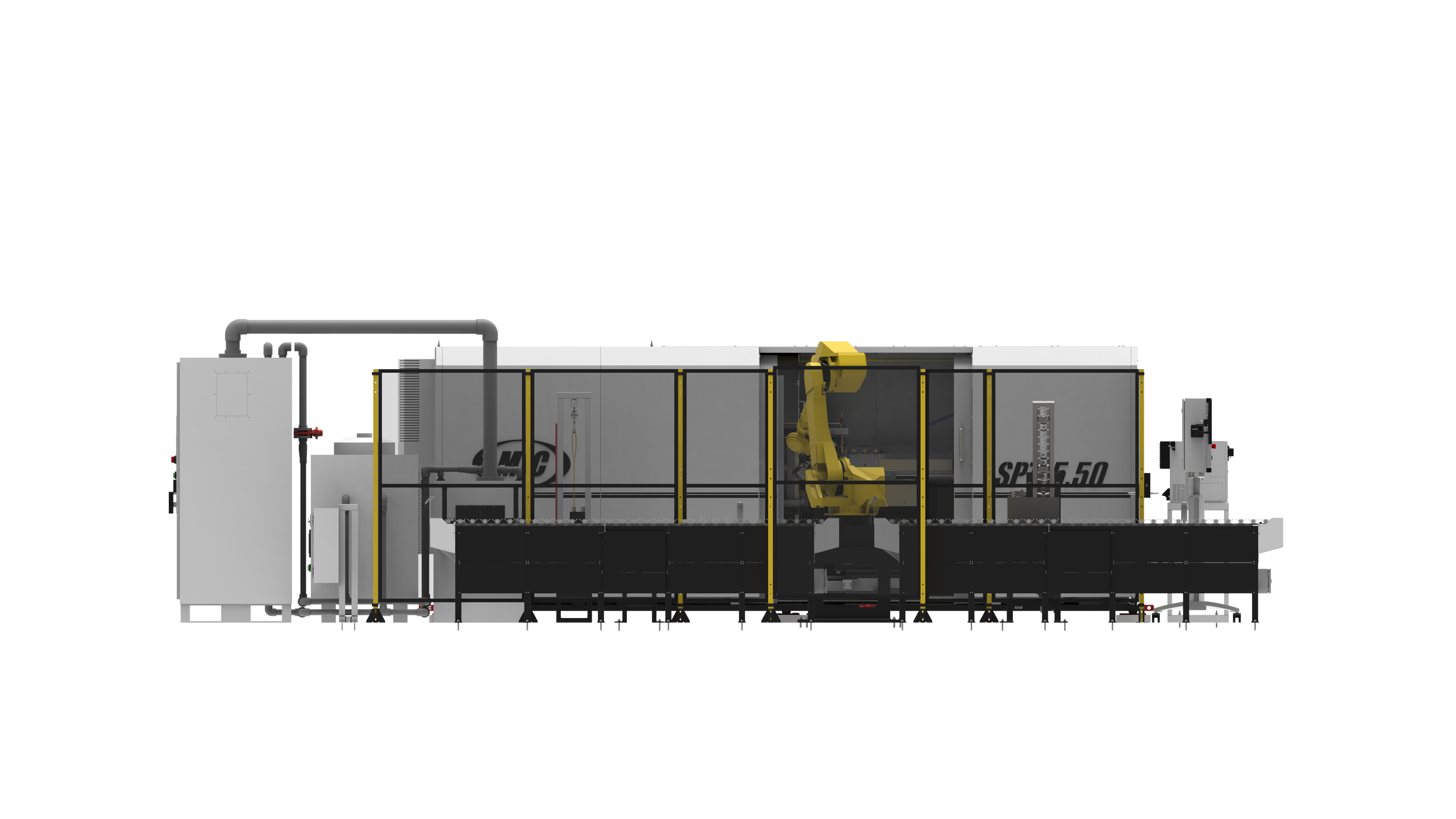

SPT-5.50 FRONT.png

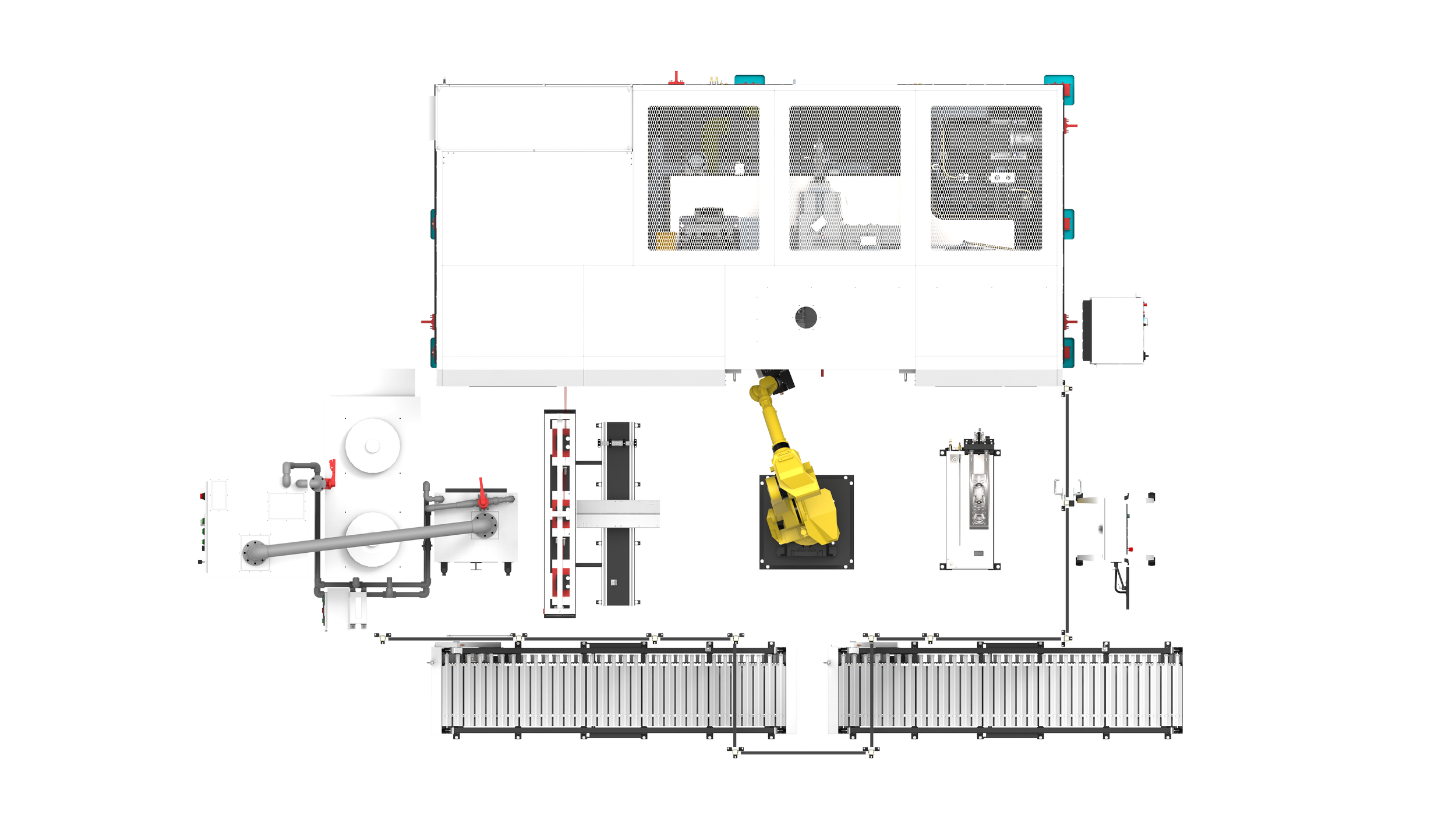

SPT-5.50 TOP.png

Manufactured by MJC Engineering & Technology, Huntington Beach, California

  • Tell us your part envelope, material and volume. We'll identify the processes it takes and the manufacturing source.
